SR11500
#SR1150

Water and Sewage Management

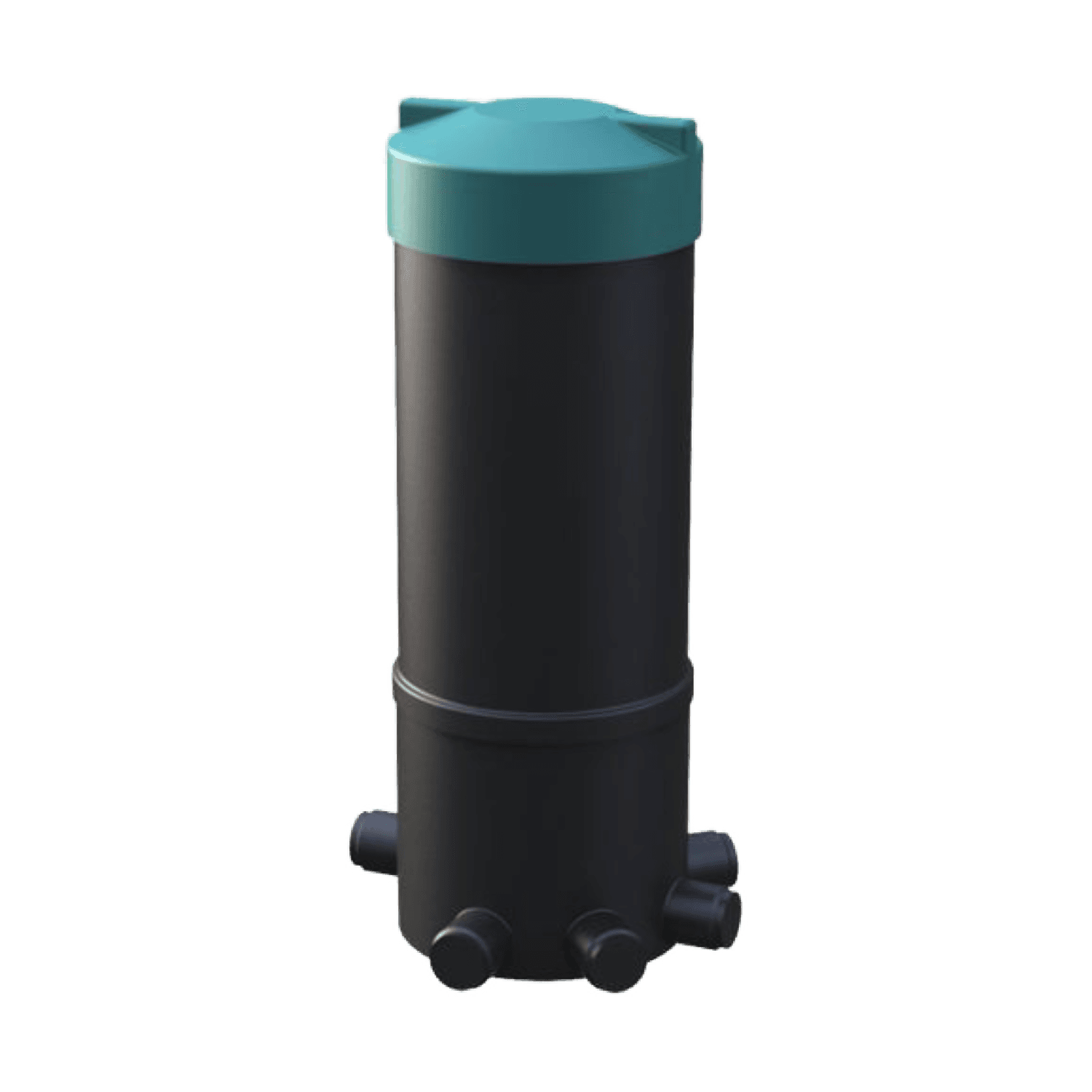

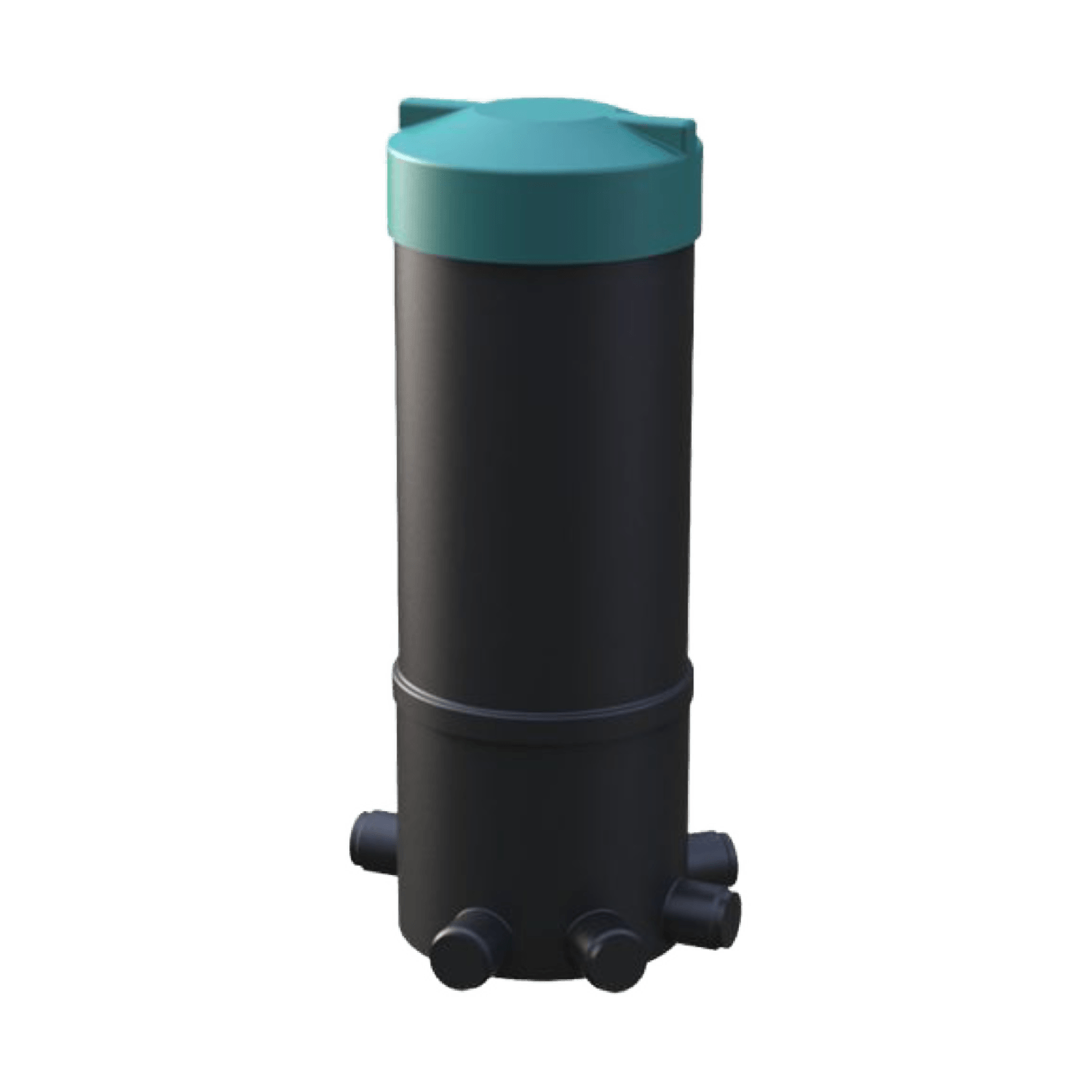

Distribution Chamber

The product consists of a tank and a cover. The tank is equipped with 5 connectors for connecting 110mm diameter pipes - one of them is intended for the sewage inlet pipe, and the other openings are used to connect drainage pipes. In case deeper drainage installation is required, a revision can be applied. It is produced as a monolithic unit made of polyethylene using rotational molding, ensuring impermeability to water and sewage, mechanical resistance to soil load, decompression, impact resistance, and resistance to aggressive substances in sewage, temperature changes, and full stability in the ground. The dimensions (below) of the tank allow for its installation on small plots. Furthermore, installation, thanks to its low weight, is possible without the use of heavy and expensive cranes. The purpose of the distribution chamber is to evenly distribute sewage in a household sewage treatment plant installation and allows for periodic inspection.

iconWater and Sewage Management
0
Distribution Chamber0
Gallery
Distribution Chamber0
CONTACT
Specification
Similar Products
Articles
CONTACT
Specification
Similar Products
Articles

SR1150

Specification

Ilość wyjść5
Diameter [mm]480
Wysokość [mm]1149
Otwór [mm]425
CoverDN490

dimensions - L x W x H
