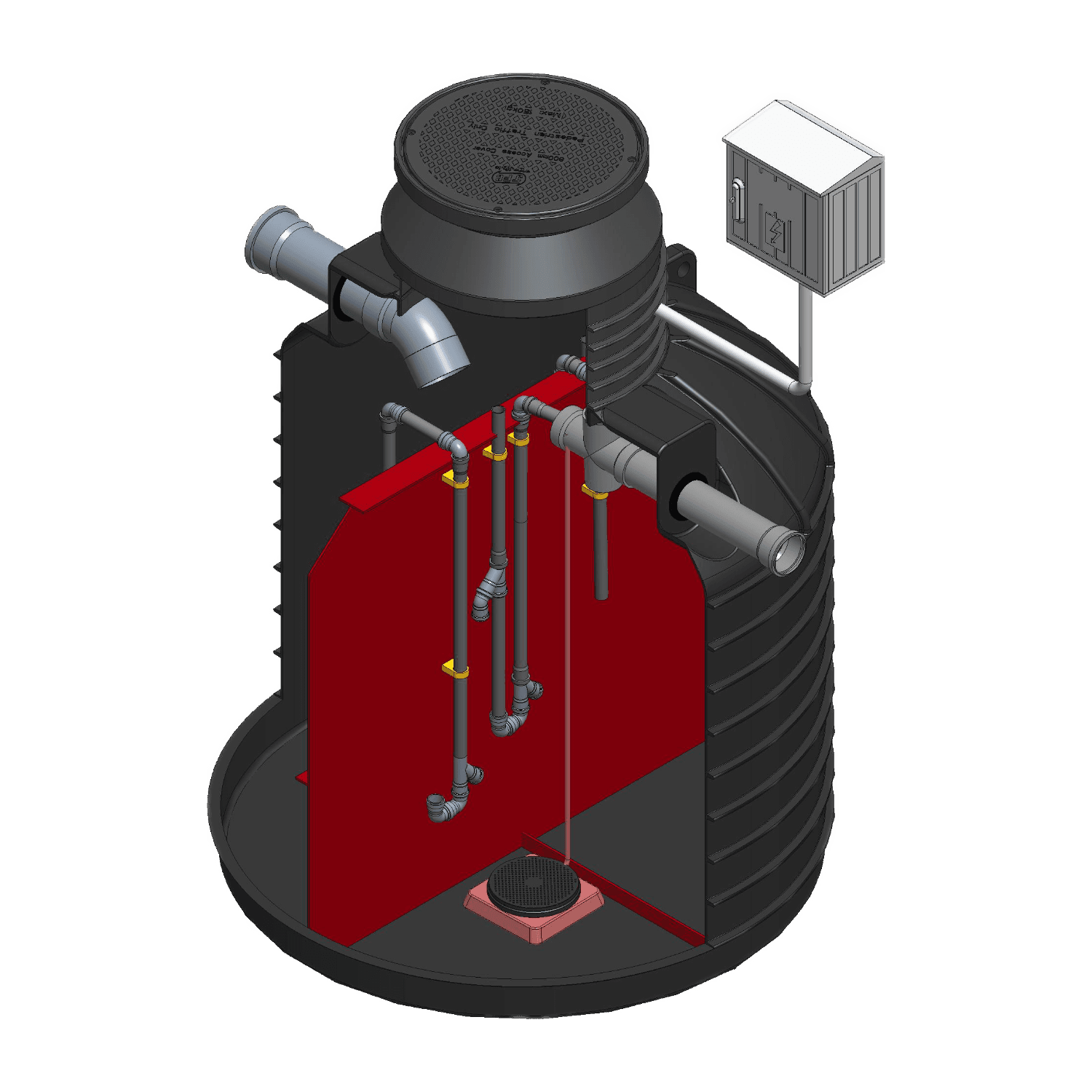

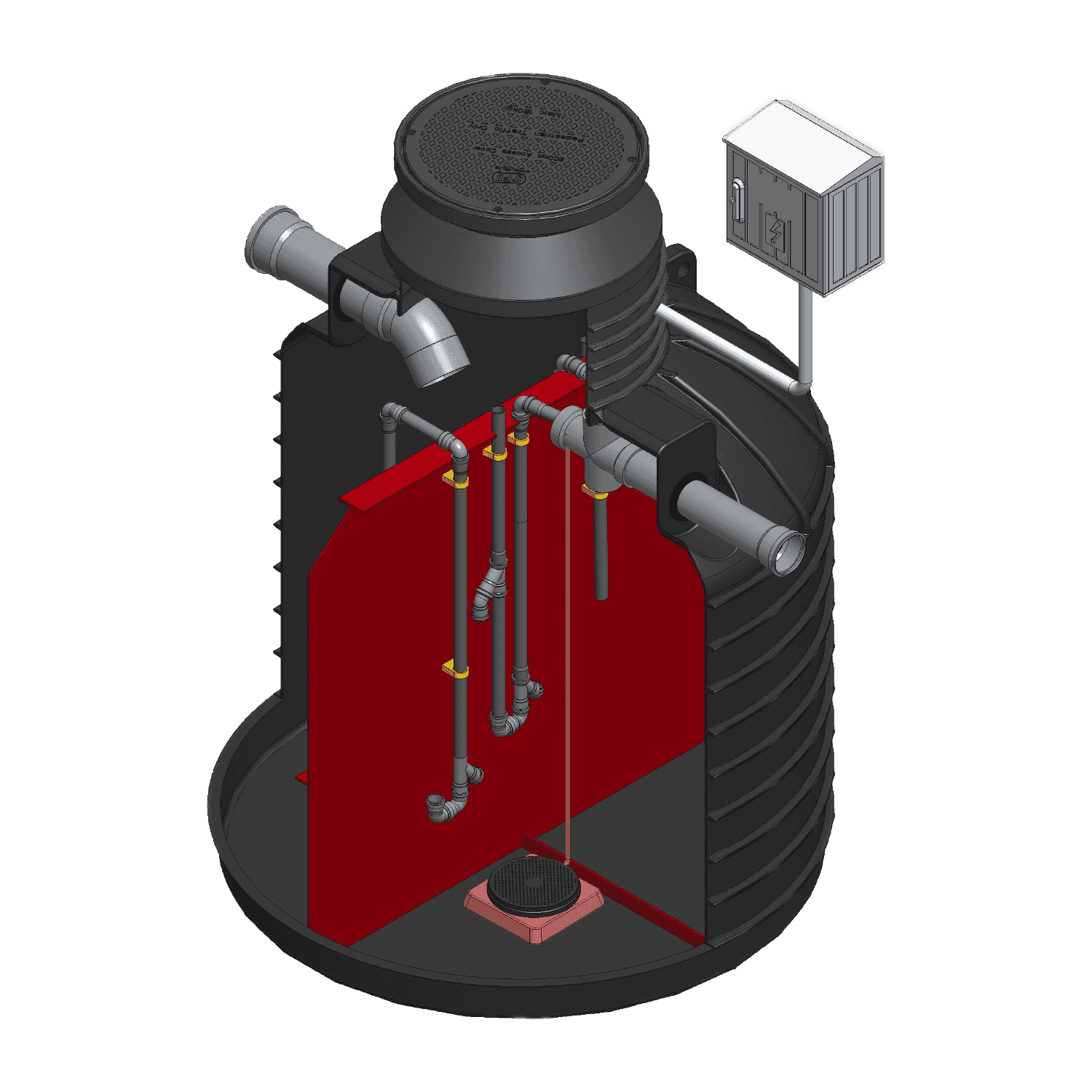

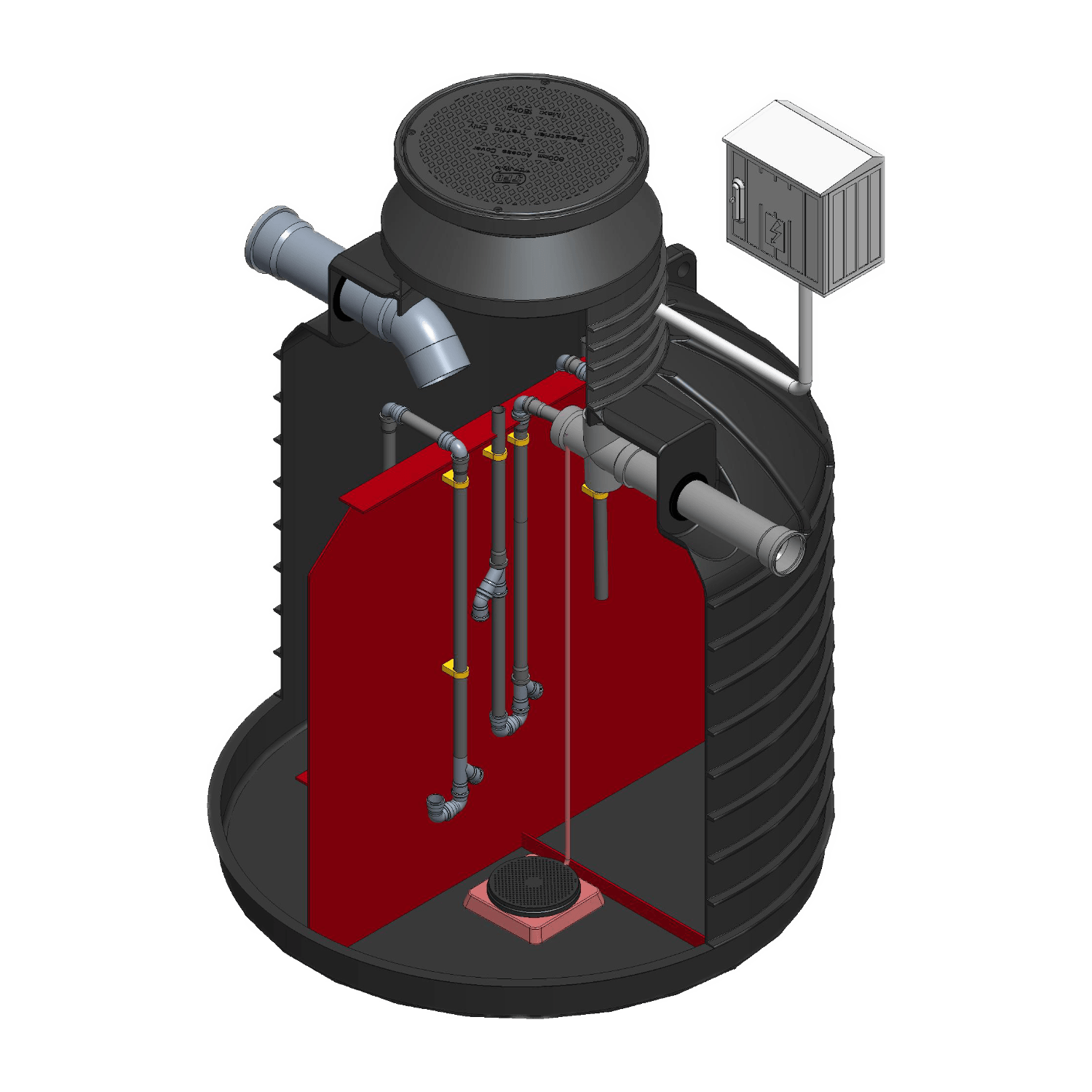

The HYDRO Residential Wastewater Treatment Plant is a two-chamber system consisting of a preliminary settler and a biological reactor. HYDRO operates using SBR technology, which is designed to clean household wastewater to an environmentally friendly level. This system is adapted for receiving wastewater from households. The HYDRO treatment plant has a full test report and a CE certificate in compliance with the PN-EN 12566 3+A2:2013 standard, independently verifying its effectiveness in purification, durability, tightness, and strength.
| Number of users [max. pers.] | Number of tanks | System capacity [min. dm3] | Capacity of the sedimentation tank [min. dm3] | Diameter of sewage connections [mm] | Inspection manhole [mm] | Wastewater dosing | Recirculation | Product code |
| 1-4 | 1 x WWT-01 | 2000 | 1000 | 110/160 | 600 | YES | YES | H1 |
| 1-4 | 1 x WWT-02 | 3400 | 1700 | 110/160 | 600 | YES | YES | H2 |
| 1-4 | 2 x WWT-01 | 4000 | 2000 | 110/160 | 2 x 600 | YES | YES | H3 |
| 5-6 | 1 x WWT-02 | 3400 | 1700 | 110/160 | 600 | YES | YES | H5 |
| 5-6 | 2 x WWT-01 | 4000 | 2000 | 110/160 | 2 x 600 | YES | YES | H6 |
| 5-6 | 2 x WWT-02 | 6800 | 3400 | 110/160 | 2 x 600 | YES | YES | H8 |
dimensions - L x W x H
