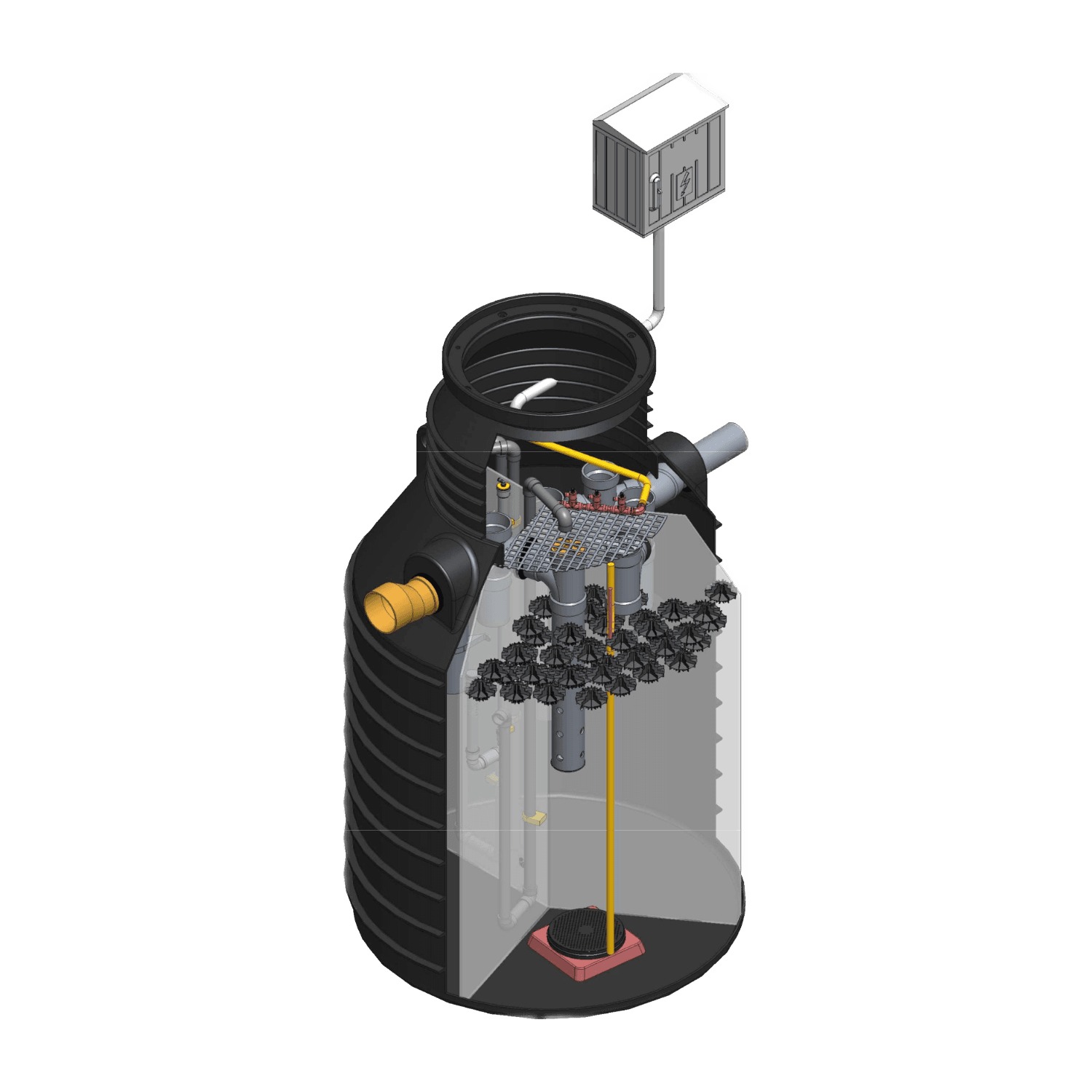

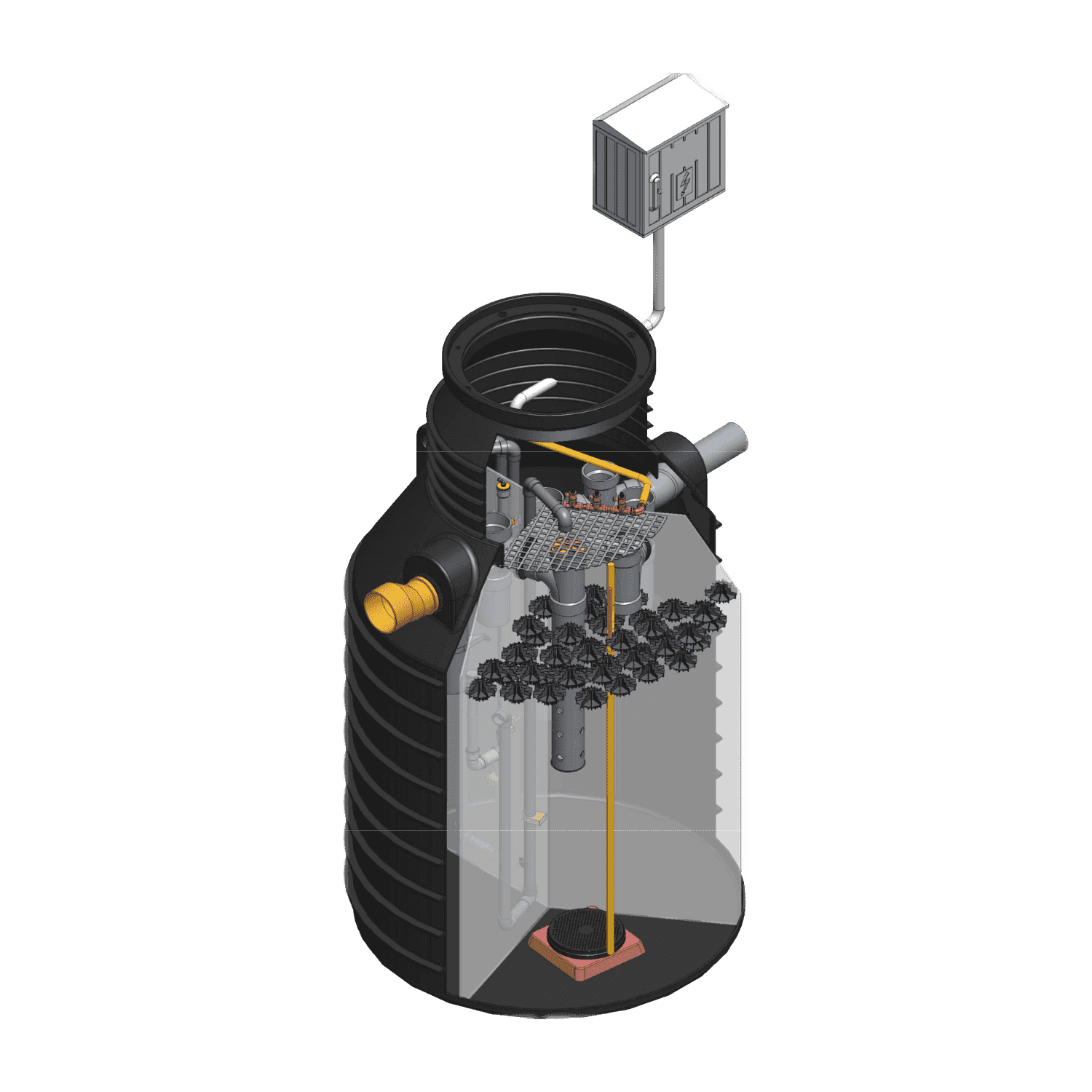

The HYDRO-CYCLE Residential Wastewater Treatment Plant is one of the few systems on the market that, thanks to its innovative design based on solutions without advanced automation, guarantees high effectiveness in wastewater treatment and minimal environmental impact, confirmed by compliance with the 12566-3 standard. The treatment plants use a special self-cleaning fluidized bed, combining the features commonly used in collective wastewater treatment technologies – activated sludge and biological bed. It is a three-chamber system that does not require constant, specialized maintenance, making it an ideal solution for areas without sewage systems.
| Number of users [max. pers.] | Number of tanks | System capacity [min. dm3] | Capacity of the sedimentation tank [min. dm3] | Diameter of sewage connections [mm] | Inspection manhole [mm] | Wastewater dosing | Recirculation | Product code |
| do 4 | 1 x WWT-01 | 2000 | 600 | 110/160 | 600 | YES | YES | HC1 |
| 4-6 | 1 x WWT-02 | 3400 | 2000 | 110/160 | 600 | YES | YES | HC2 |
| 4-6 | 2 x WWT-01 | 4000 | 2600 | 110/160 | 2 x 600 | YES | YES | HC3 |
| 7-8 | 1 x WWT-02 | 3400 | 1000 | 110/160 | 600 | YES | YES | HC4 |
| 8-10 | 2 x WWT-01 | 4000 | 2000 | 110/160 | 2 x 600 | YES | YES | HC5 |
| 10-15 | 2 x WWT-02 | 6800 | 3400 | 110/160 | 2 x 600 | YES | YES | HC6 |
dimensions - L x W x H
