Tanks and distributors

JFC Blue

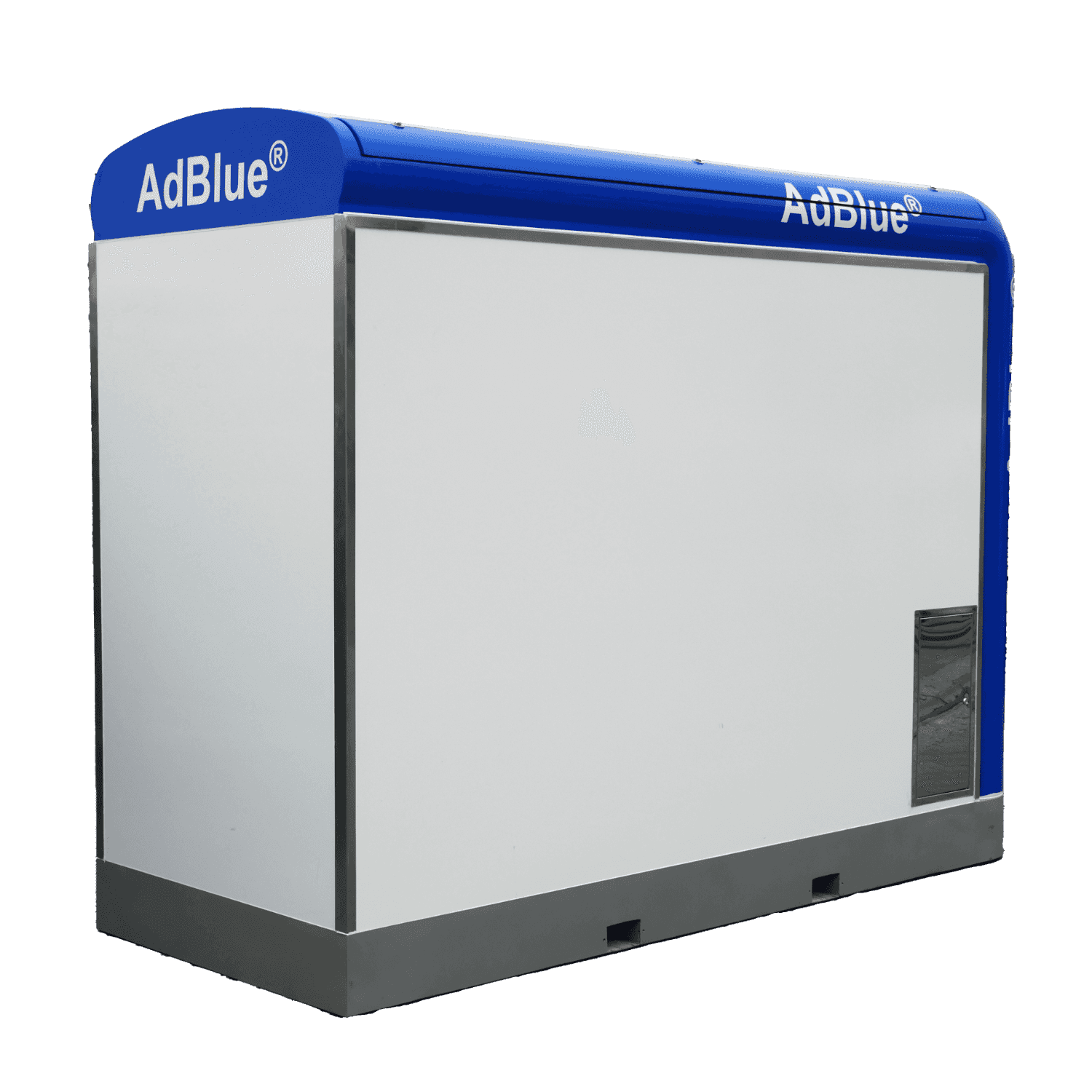

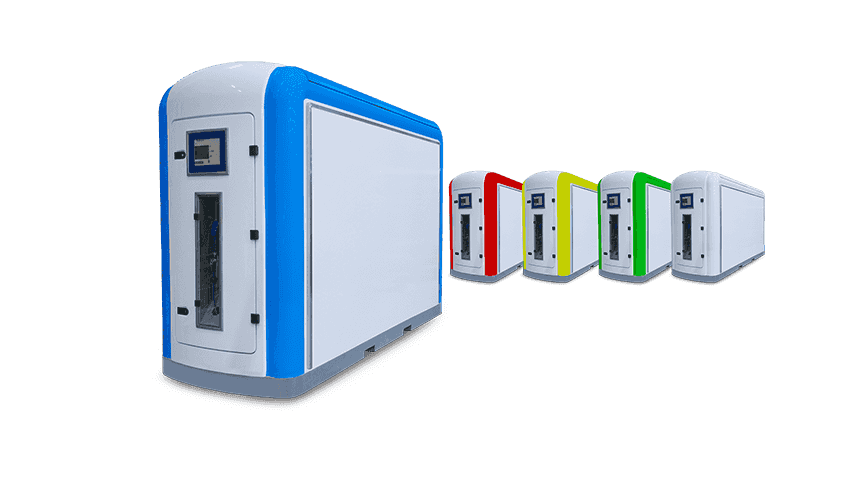

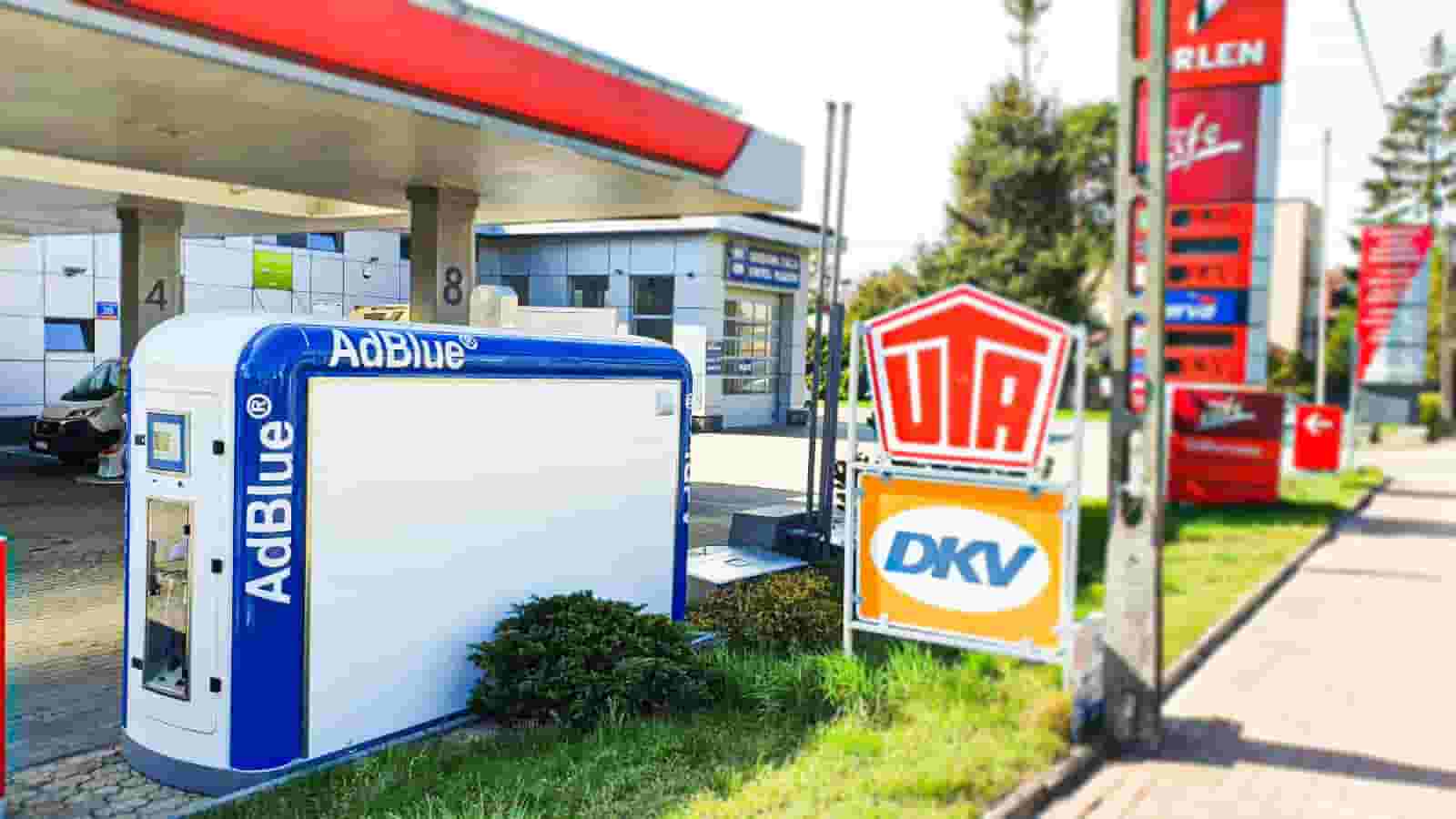

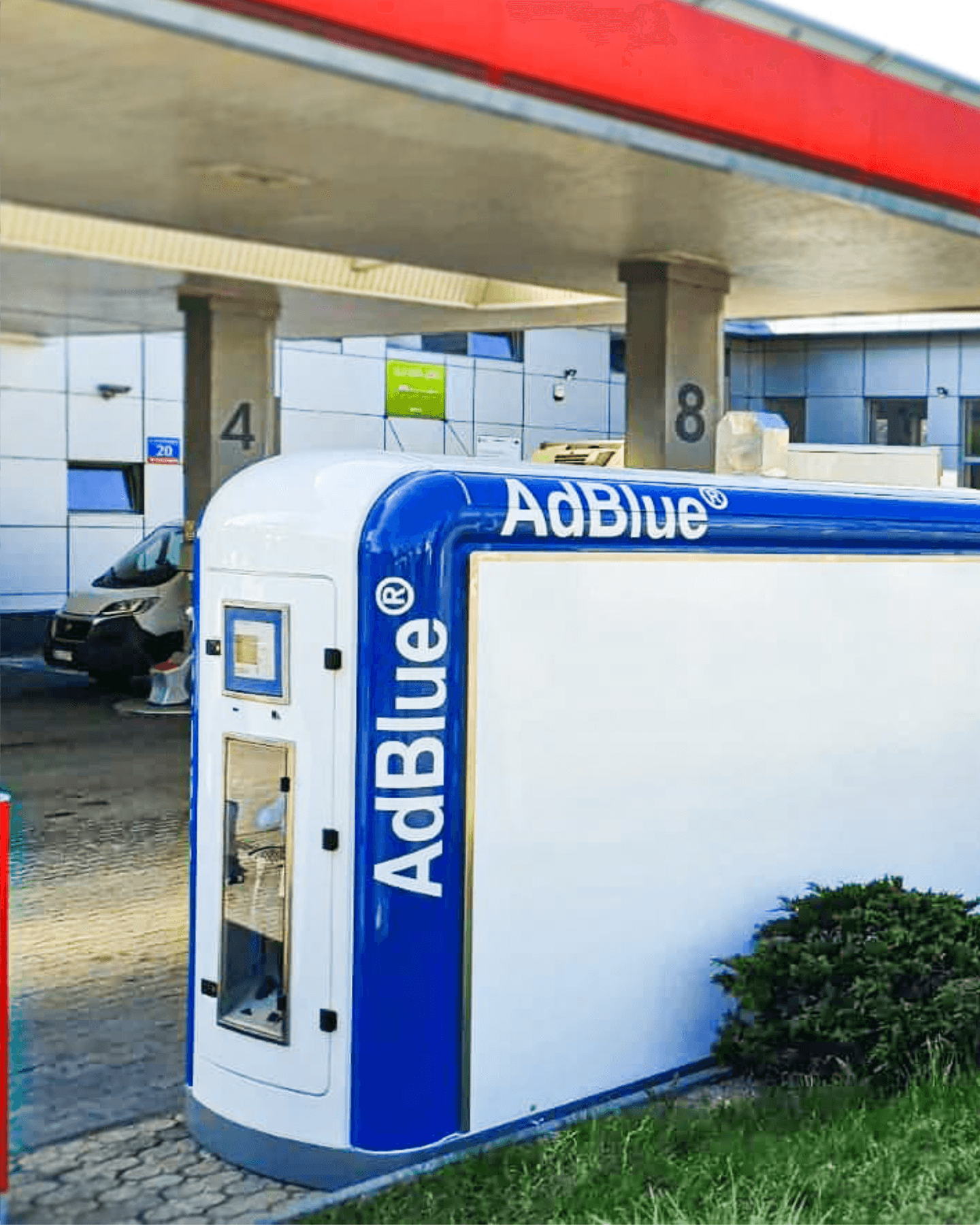

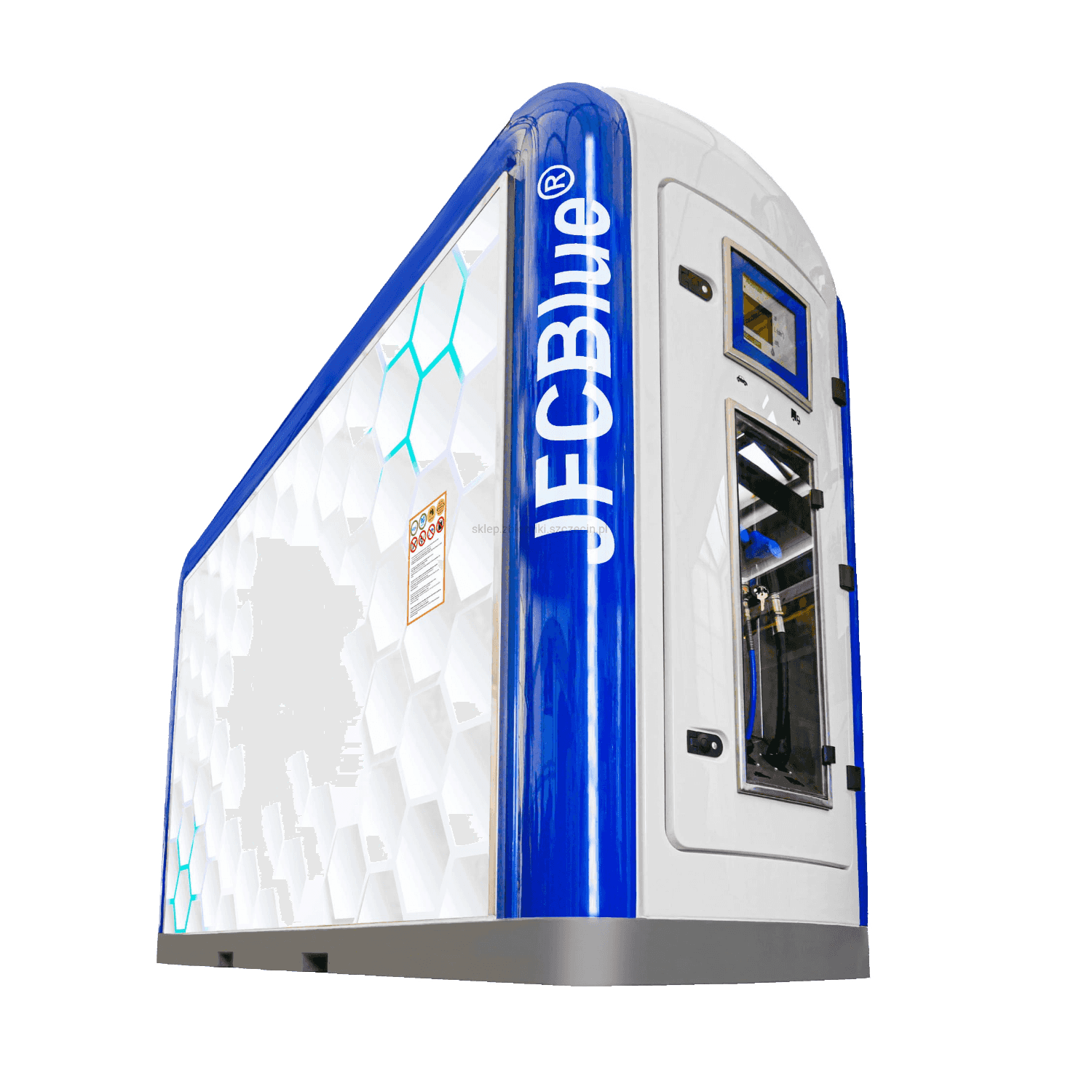

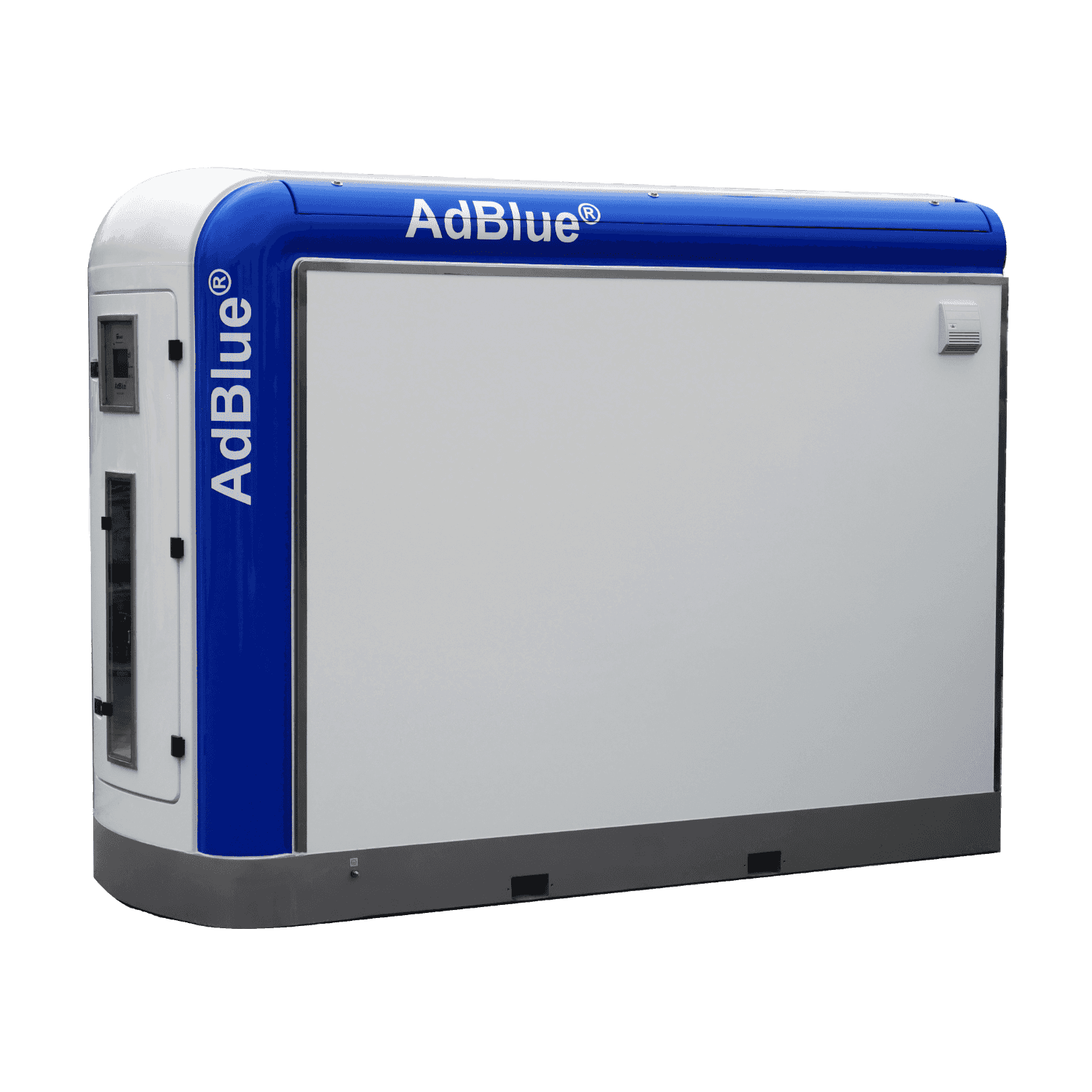

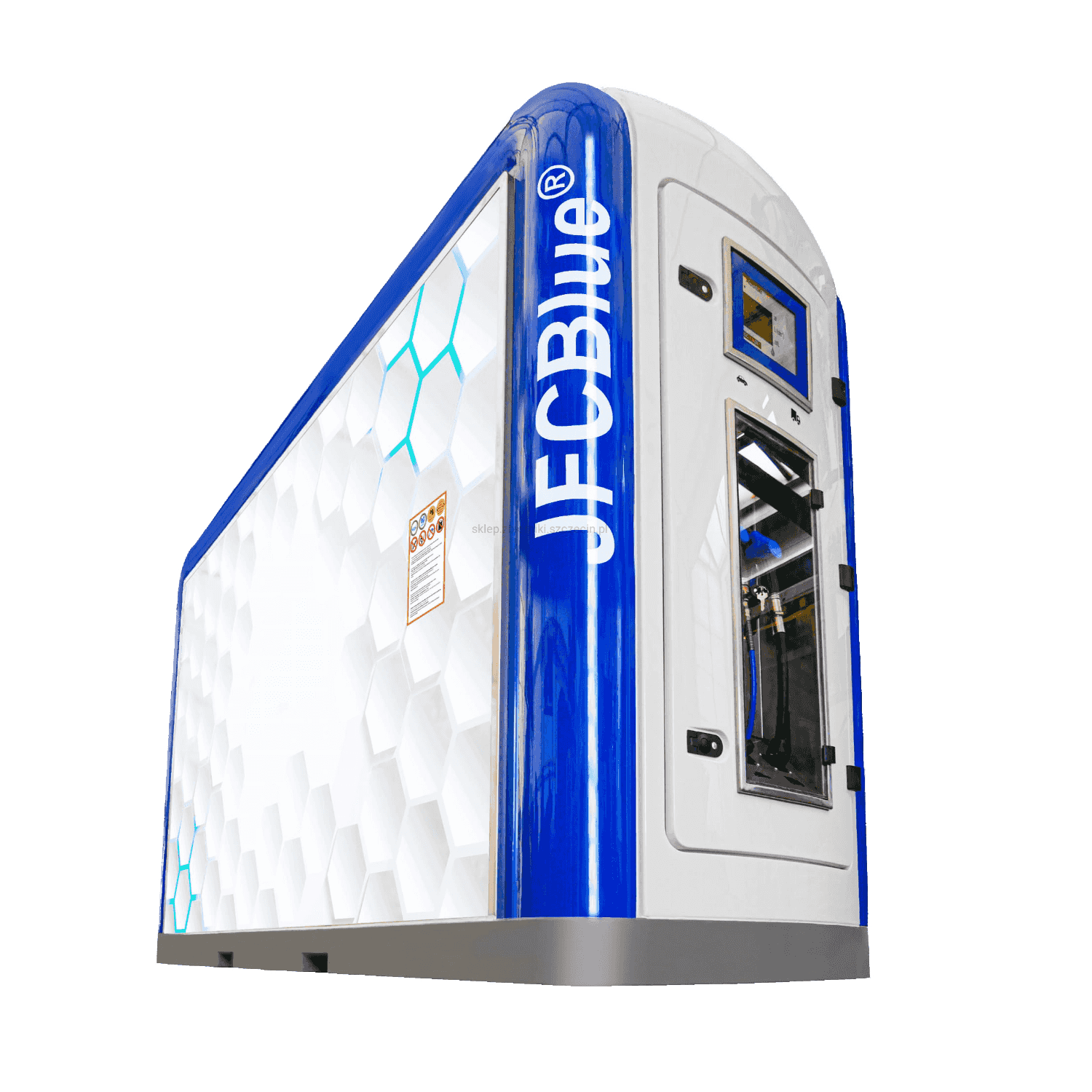

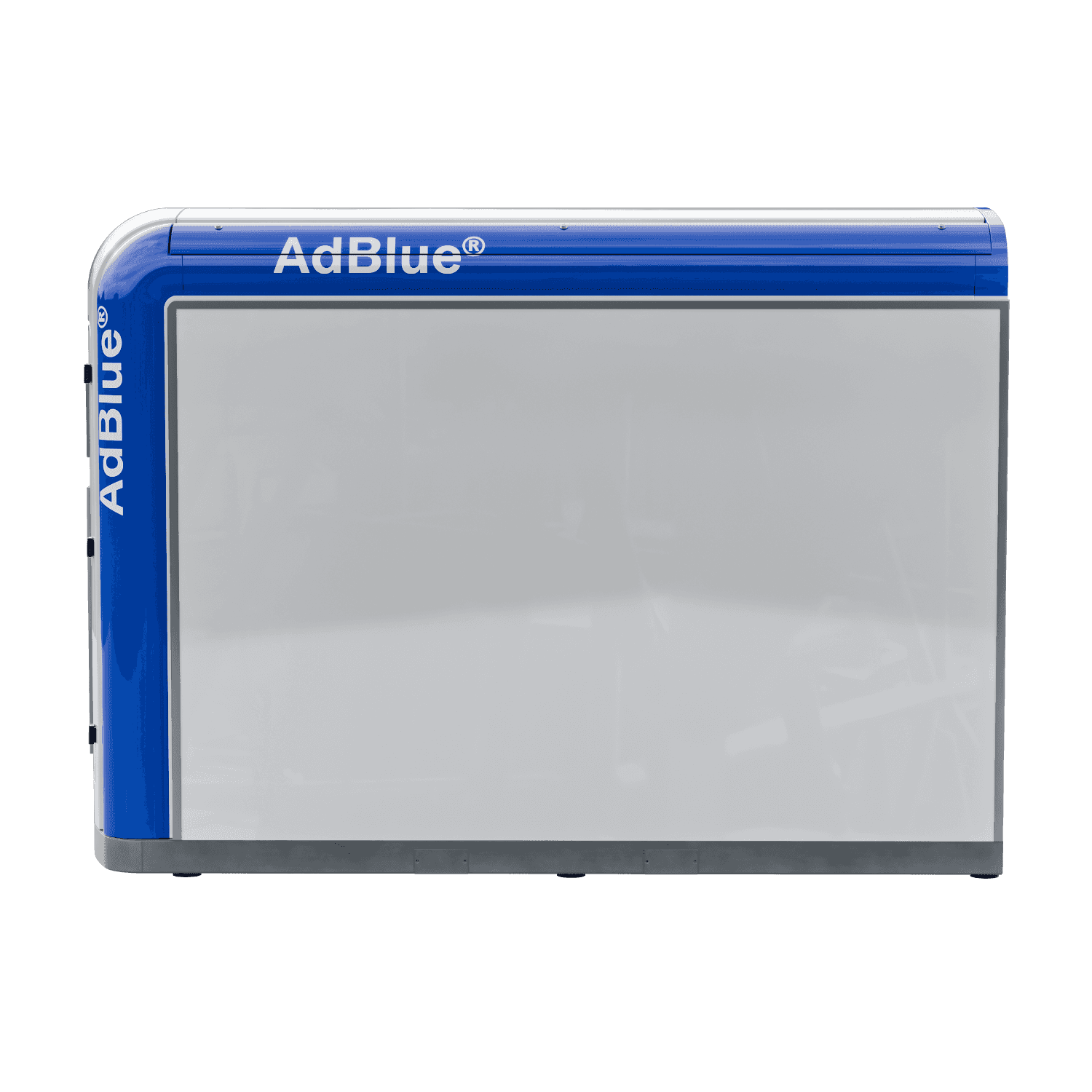

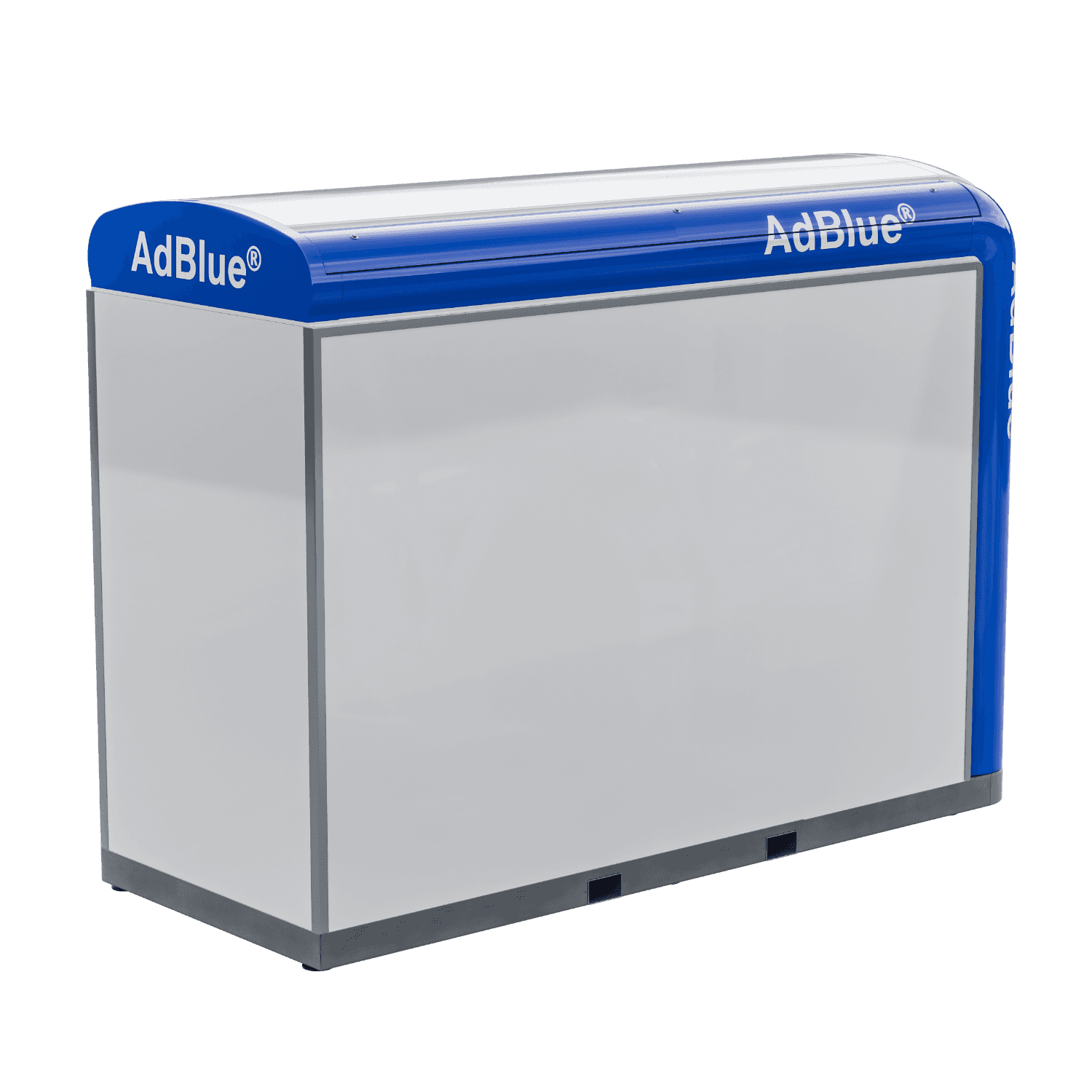

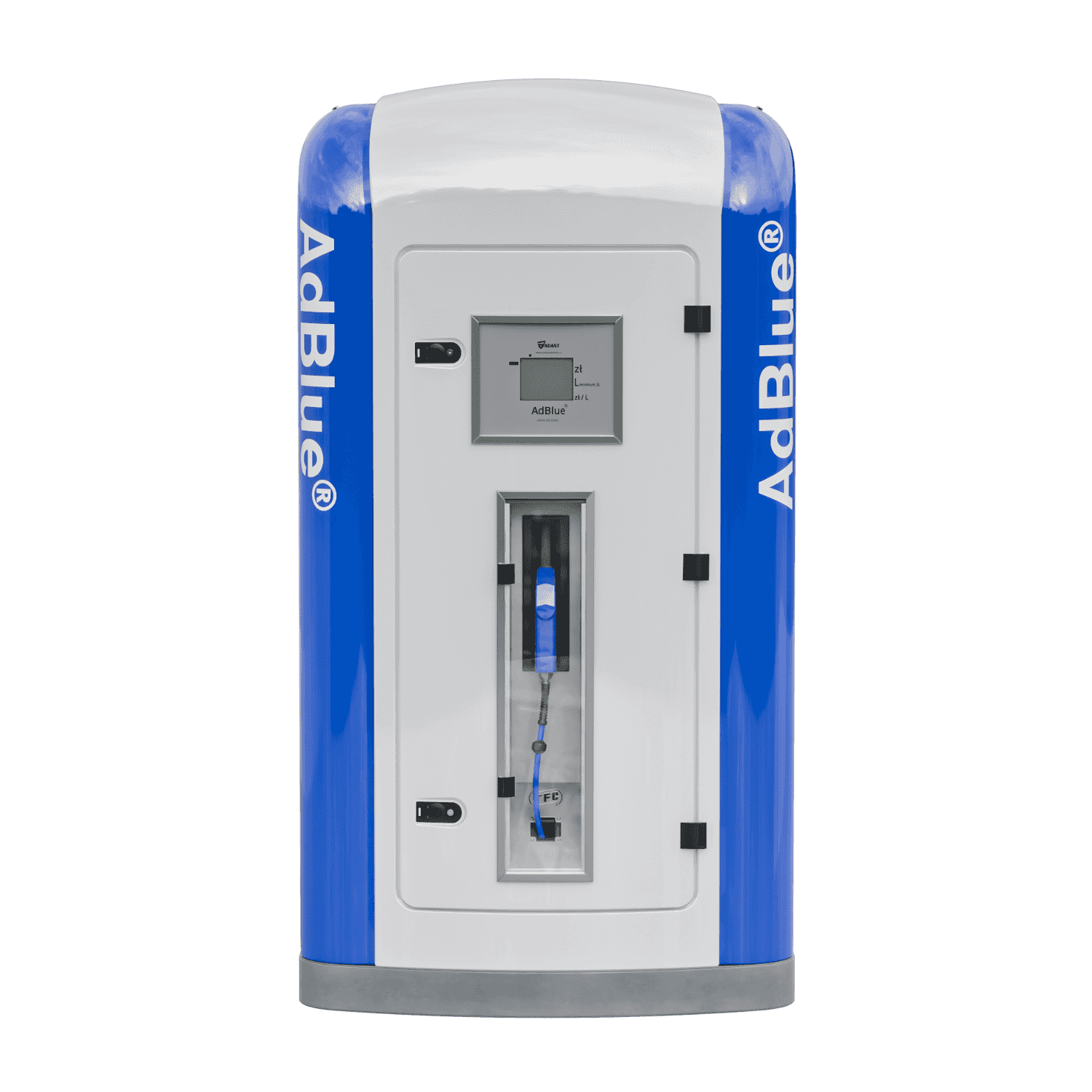

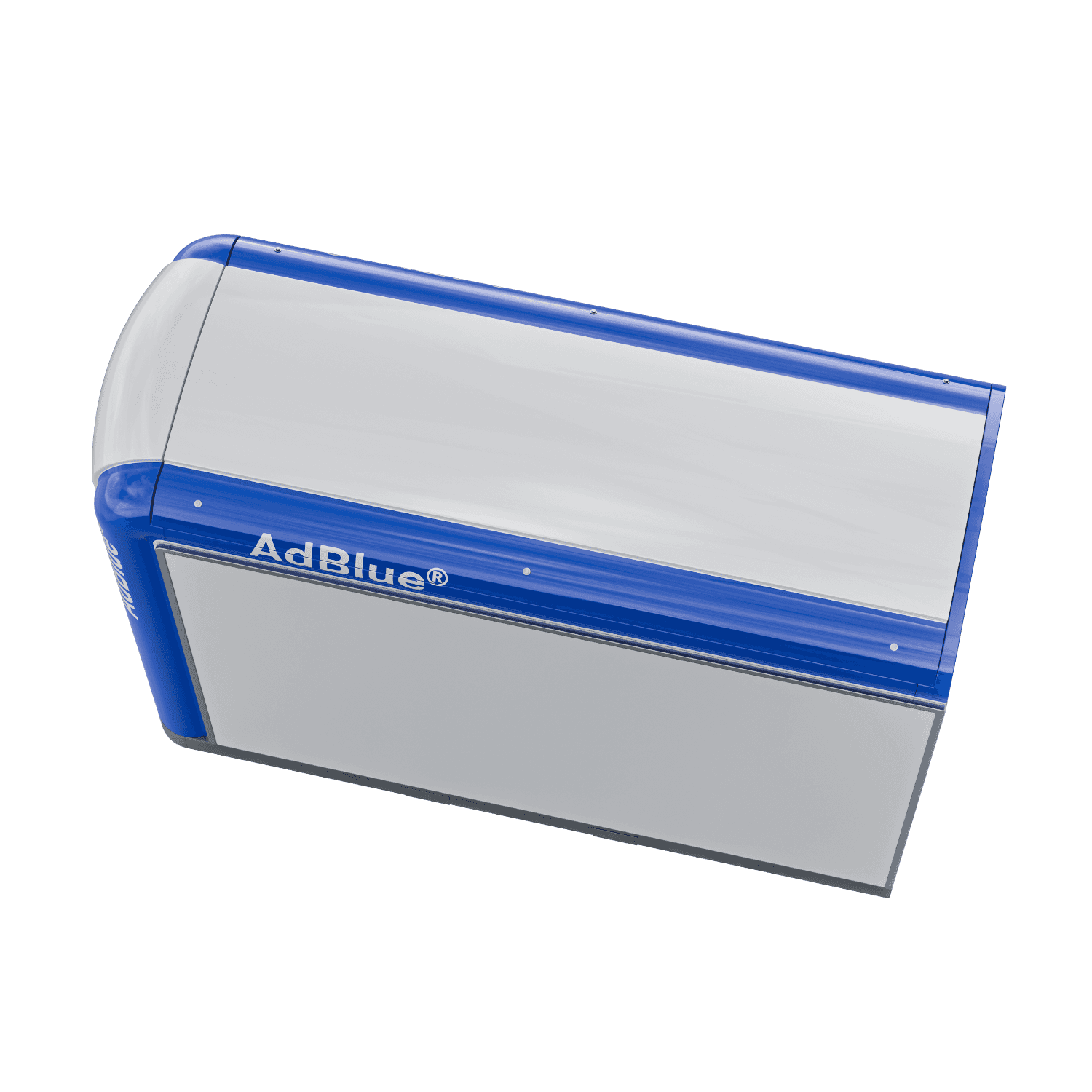

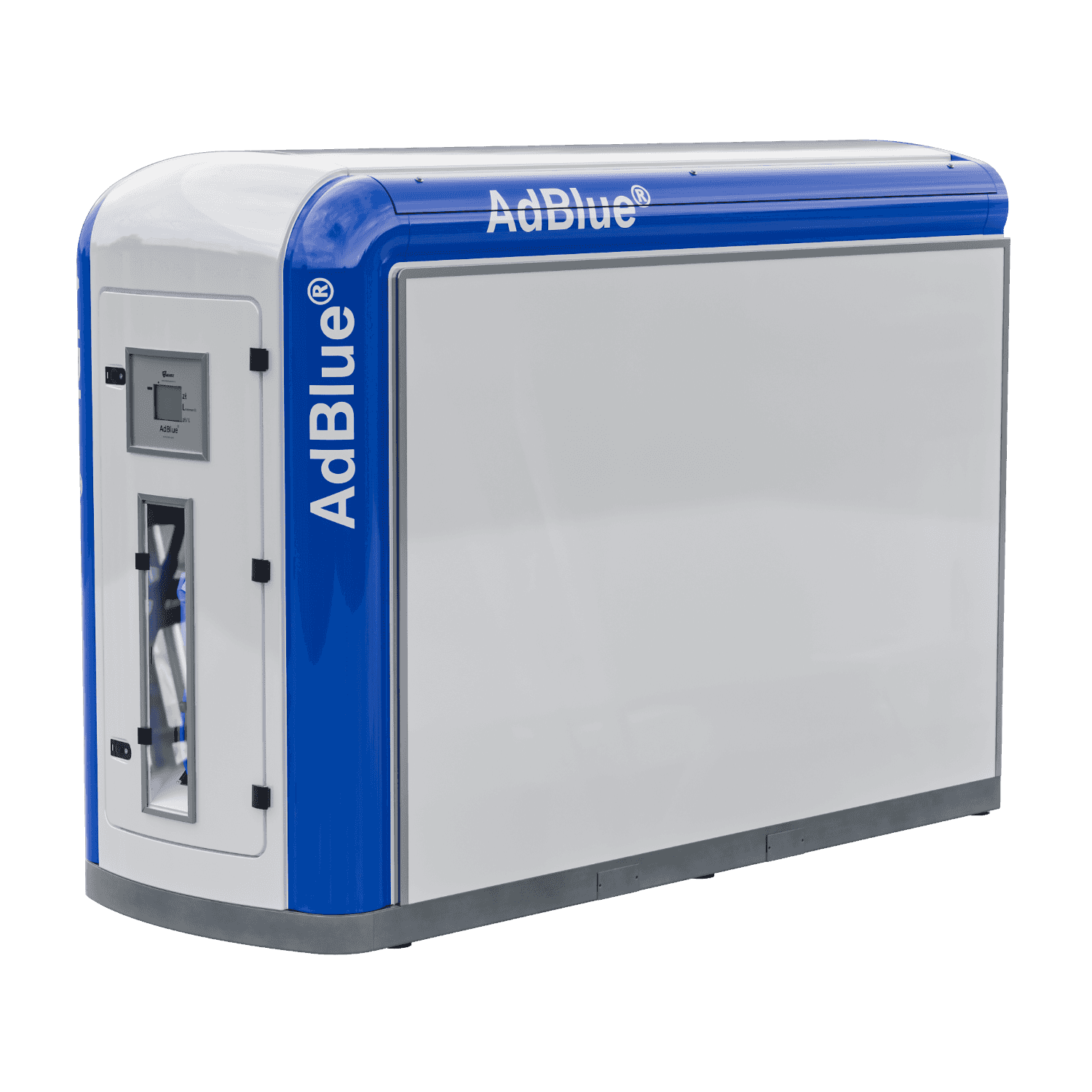

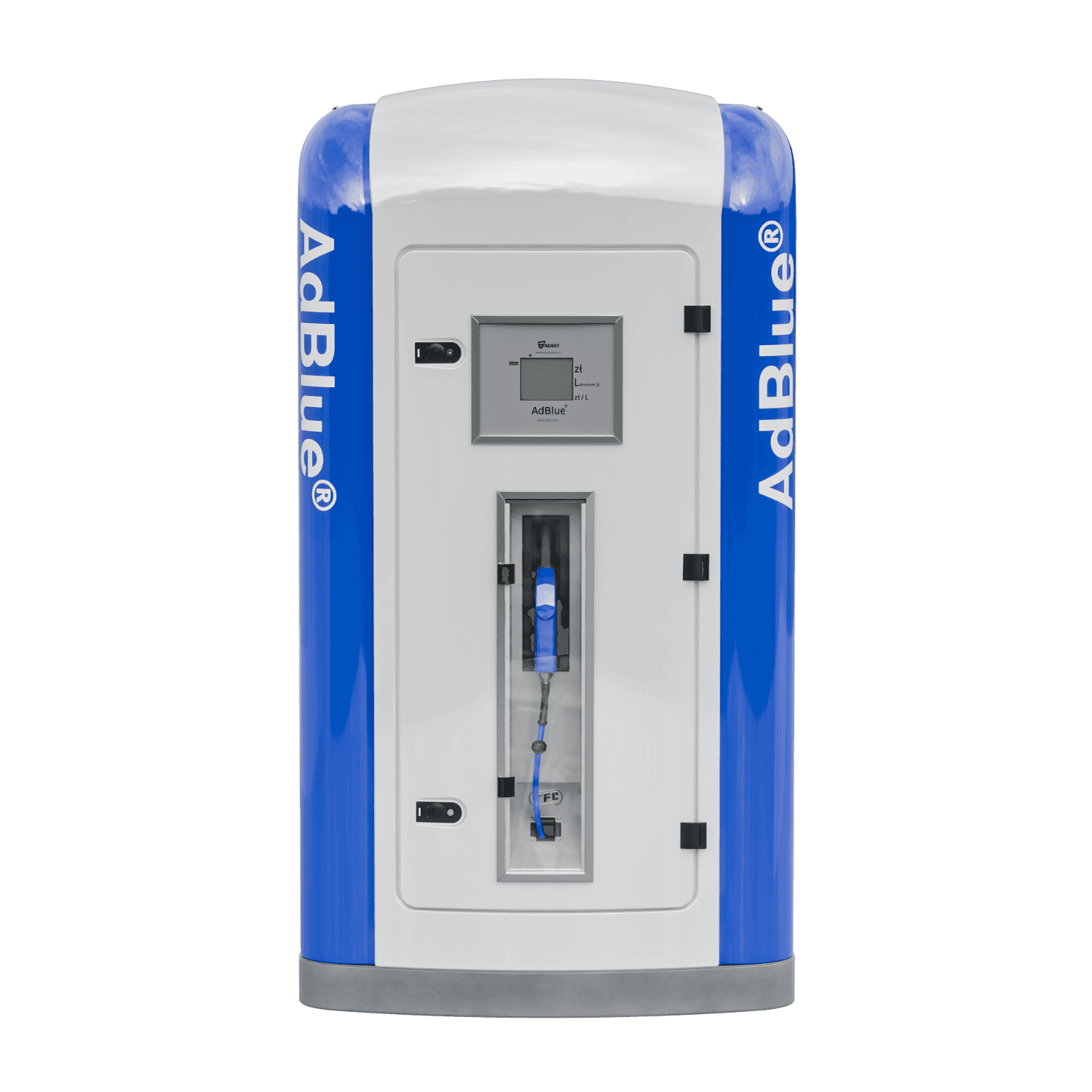

The JFCBlue® container with an integrated distribution system is an ideal solution for storing and distributing AdBlue®. The containers ensure the cleanliness and quality of the stored AdBlue®. It is possible to connect JFCBlue® to an external legalized distributor. The intelligent dimensions of JFCBlue® allow for easy installation of the tank on fuel station islands of standard width 1.2 m, ensuring that vehicle movement in the refueling area is not hindered. There is no need for additional earthworks for installation. Available in 6 capacities: 1300, 1600, 2500, 3000, 4000, 5600 liters.

iconTanks and distributors
1600 - 5600 L
0
JFC Blue0
JFC Blue1
JFC Blue2
JFC Blue3
JFC Blue4
JFC Blue5
Gallery
JFC Blue0
JFC Blue1
JFC Blue2
JFC Blue3
JFC Blue4
JFC Blue5
CONTACT
Equipment
Learn more
Certificates
Dimension Table
Similar Products
Articles
CONTACT
Equipment
Learn more
Certificates
Dimension Table
Similar Products
Articles

JFCBLUE

Equipment

BasicOptional
    JFCBLUE
    What You Get
  1. External housing - laminate
  2. Access doors
  3. ADAST or Flowmont panel
  4. Flow meter
  5. Filling line ending with a TODO connector
  6. Thermal insulation
  7. Thermostat-controlled fan
  8. Heating of the service area
  9. Heated area for the nozzle
  10. Automatic nozzle for trucks/personal cars
  11. Distribution hose ¾”, 6m length on an automatic reel
  12. Sensor/alarm for leak/liquid level
  13. Sensor/alarm for max. level - GOK BC2
  14. LED lighting of the distribution cabinet
  15. Manhole
  16. Ventilation

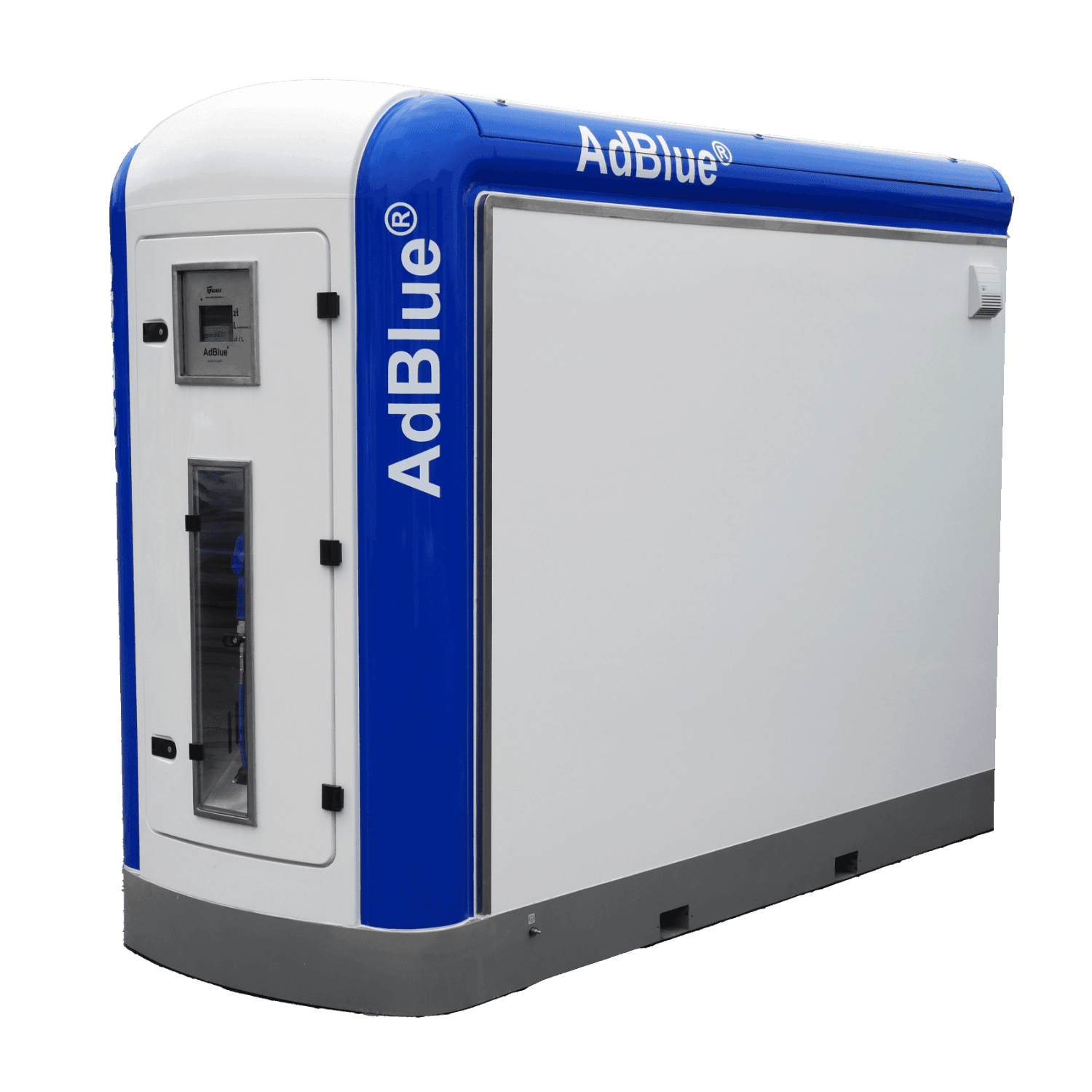

JFC Blue-photo
dimensions: L x W x H
440 x 227,5 x 120 [cm]

JFCBLUE

Learn More

JFC Blue

Idealne dopasowanie do wysepek na stacjach benzynowych

Inteligentne wymiary JFCBlue® umożliwiają łatwy montaż zbiornika na wyspach o standardowej szerokości 1,2 m, dzięki czemu ruch pojazdów po strefie tankowania nie jest utrudniony. Nie ma potrzeby wykonania dodatkowych prac ziemnych do instalacji.

Kontener JFCBlue® ze zintegrowanym systememdystrybucji to idealne rozwiązanie do przechowywania idystrybucji AdBlue®. Pojemniki gwarantują czystość i jakośćprzechowywanej cieczy.Wieloletnie analizy potrzeb klientów, badania rynku orazspecjalistyczna wiedza ekspertów JFC Polska pozwoliły namna wprowadzenie jednego z najbardziej profesjonalnychrozwiązań w zakresie magazynowania i dystrybucji AdBlue®- kontenera JFCBlue®.

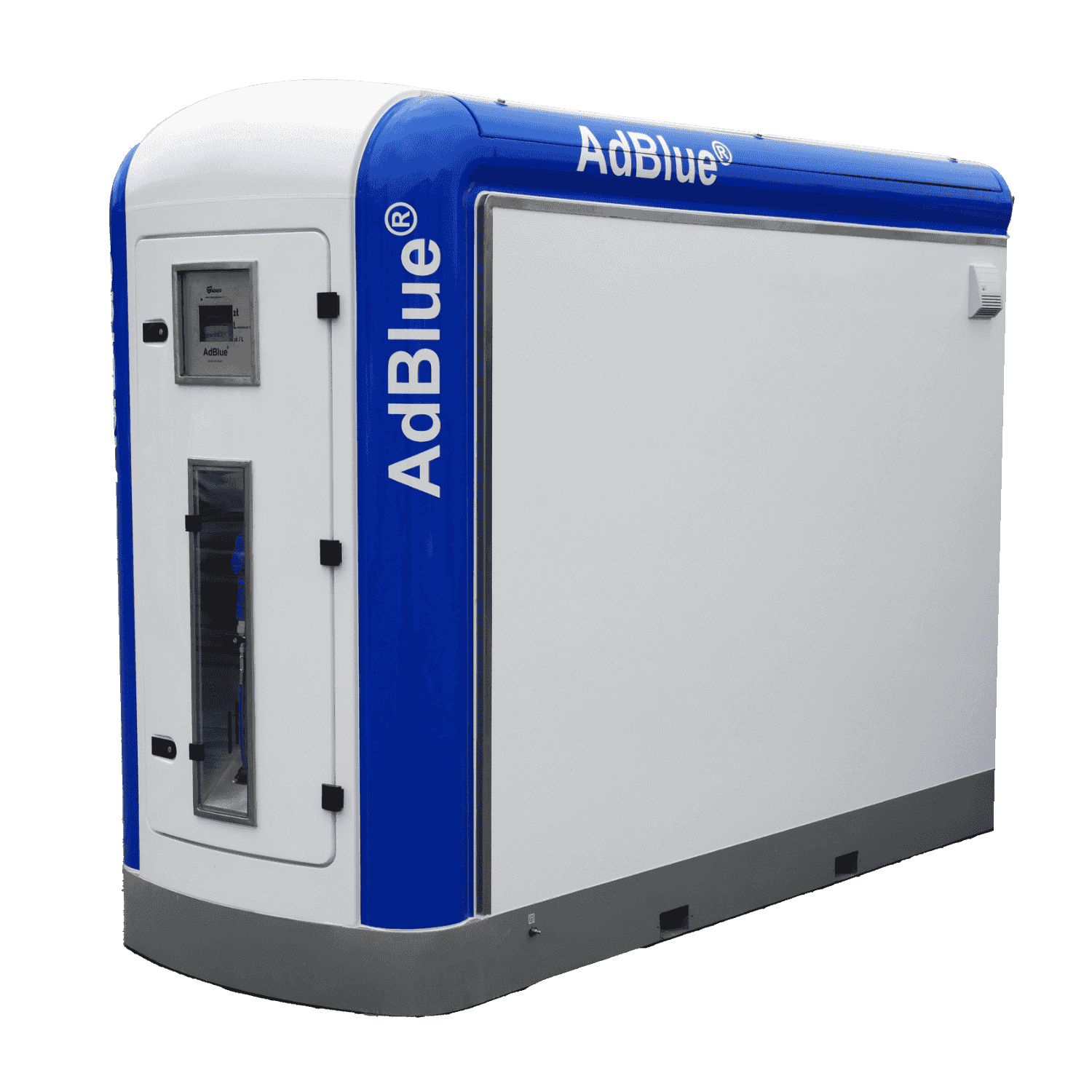

JFC Blue-photo

Confirmed Quality

Certificates

Everything Calculated

Dimensions Table

TYPE1600250030003500/40005600
CAPACITY [L]1600250030003500/40005600
LENGTH [mm]1750/19003050/32003050/32003250/34004250/4400
HEIGHT [mm]22232225232522752275
WIDTH [mm]12001200120012001200
Side door optionYESYESYESYESYES
Second filler optionYESYESYESYESYES

JFC POLAND

Contact

handshake-icon
Interested in a product?

See More

Similar Products

product0

#JFC1100

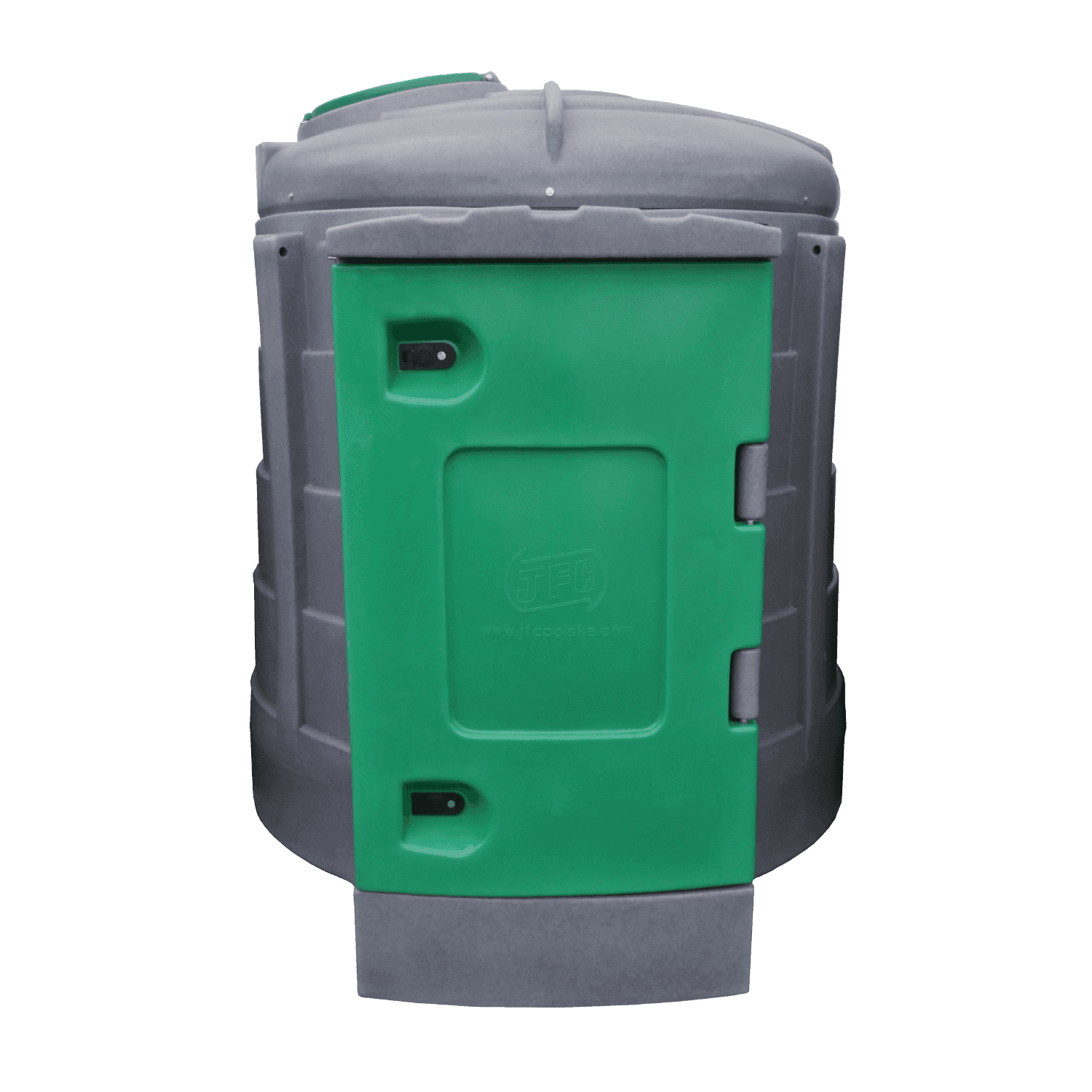

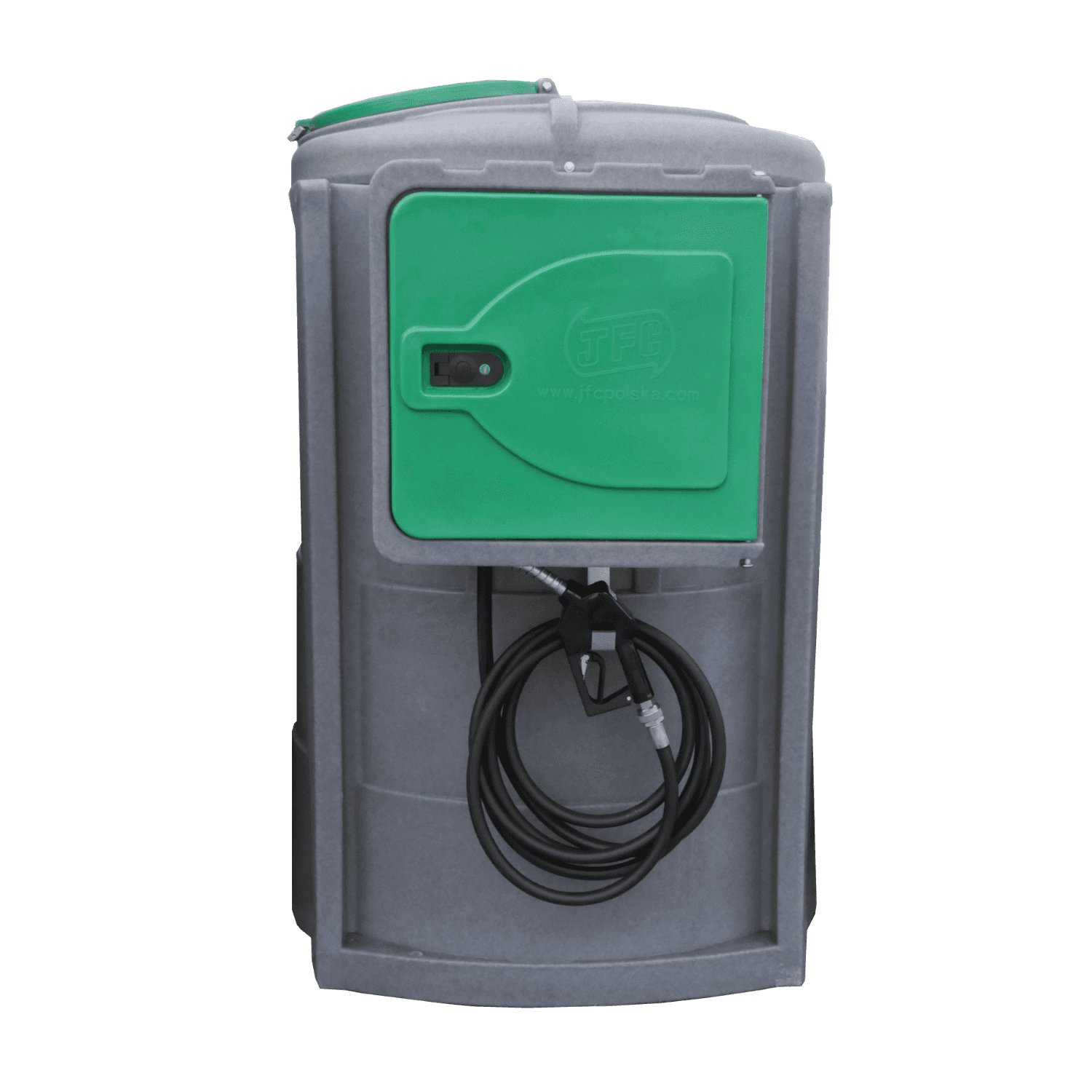

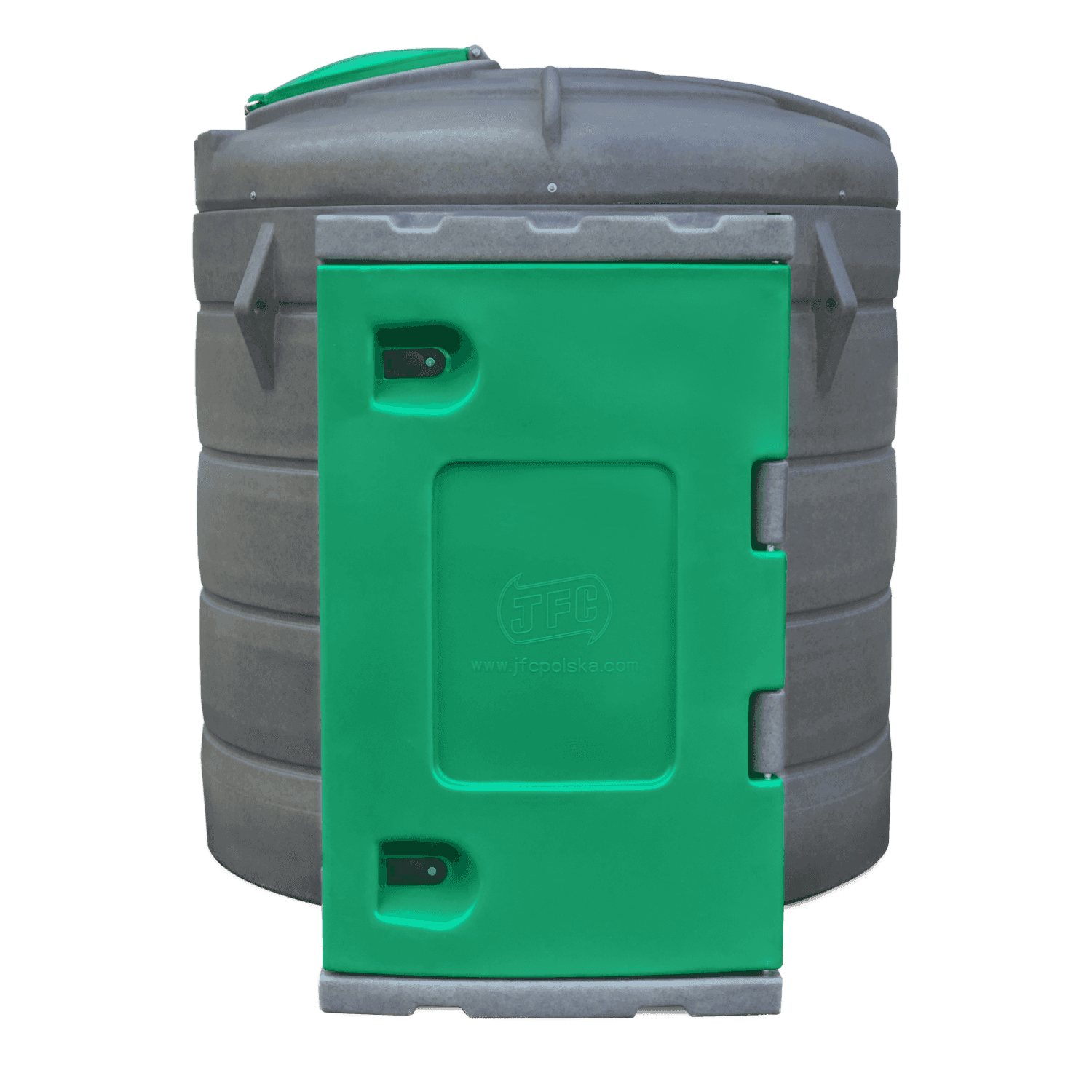

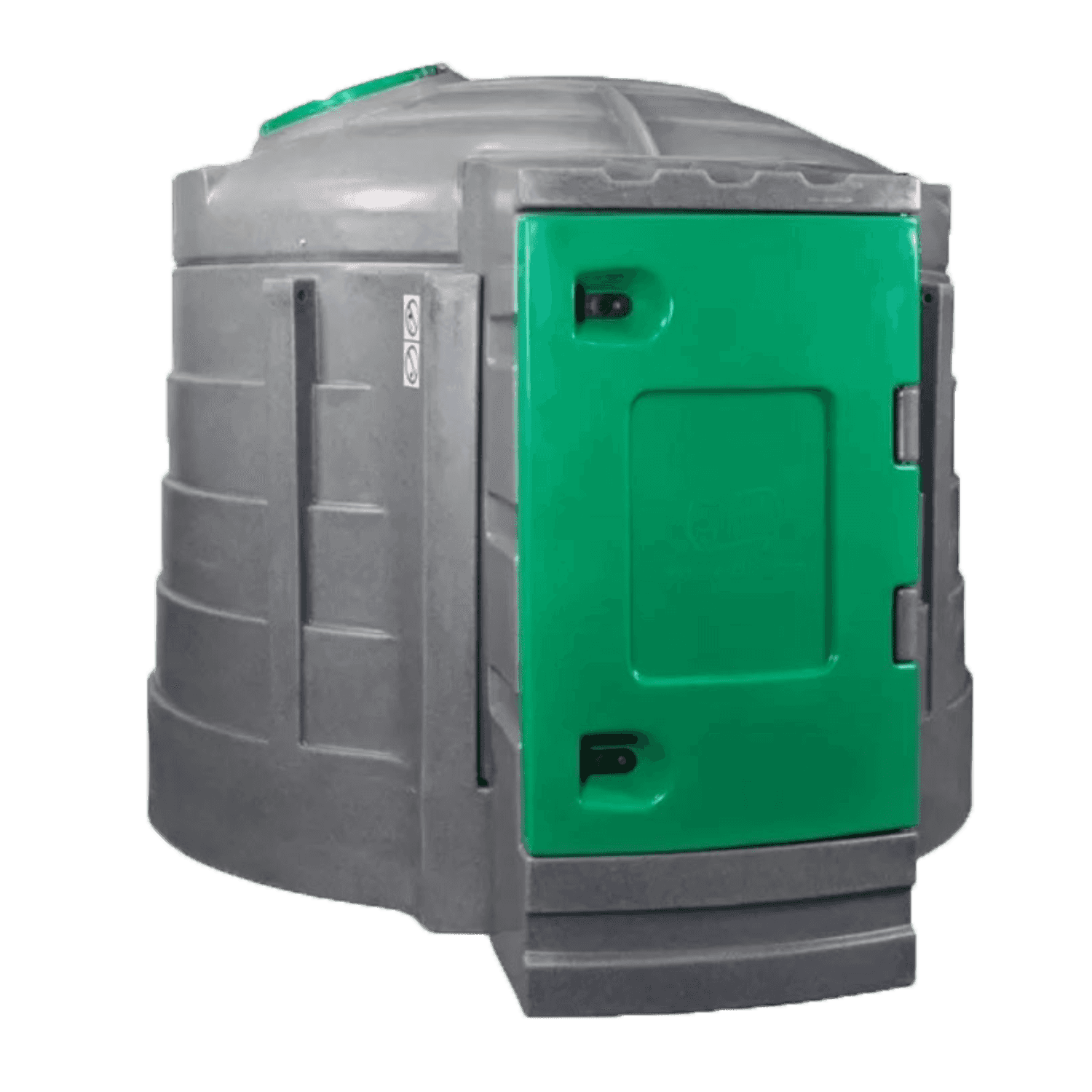

JFC 1100 Diesel Basic
